CEL620 Integrating Sound Level Meter

Overview
Applications
Using It
Options
Specifications

Specifications

The CEL620 data logging Integrating Sound Level Meter is available as either Type 1 or Type 2 as defined by the international sound level meter standards.



Sound Level Meter Standards

  • ANSI S1.4 and ANSI S1.43 Type 1 or Type 2
  • IEC 60651 and IEC 60804 Type 1 or Type 2
  • IEC 61672 Class 1 or Class 2
  • ANSI S1.11-2004 (Octave Band Filters)
  • IEC 60260 Class 0 (Octave Band Filters)



Using a meter that meets these standards is essential for repeatable results and especially for any measurements that will be used for legal purposes.

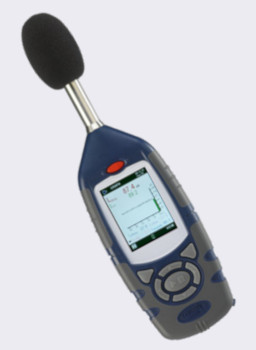

cel620 integrating sound level meter
CEL620 Sound Level Meter

Technical Specifications

Measurement range 20 to 140 dB (single range), 143 dB Peak Measured Parameters

Display 320 x 240 pixel color TFT Frequency weightings A, C and Z (simultaneous)
Output to PC USB Mini B Time weightings Fast, Slow and Impulse
    Amplitude weightings Q3, Q4 and Q5
Batteries 3 x AA Alkaline Thresholds 70 to 90 dB (applies to Lavg)
  (20 hours with backlight off)
External Power 9 to 14V DC at 250mA Sound Level LXY, LXYMax, LXYMin
  (2.1mm connector) Integrated LXeq, Lavg, LAE
    Peak LXPeak
Measurements stored 100 Takt Max LTM3, LTM5, LXIeq

Dimensions 72 x 229 x 31mm, 295g Octave Bands LXY, LXYMax, LXeq
  2.8" x 9.0" x 1.2". 10.4oz Frequency Bands 16Hz to 16kHz in 11 bands

    Where X is frequency weighting A, C or Z
    and Y is time weighting Fast, Slow or Impulse
CEL620 Sound Level Meter Datasheet (PDF, 250k)
CEL120 Acoustic Calibrator Datasheet (PDF, 423k)

Prices and Ordering

The sound level meter alone or as part of a Kit, which includes Meter, Calibrator and Carrying Case.
The meters on this page are Type 1 or Type 2 Broadband models.

Order Code Description   Price (CAD) Purchase
CEL620A2 Type 2 / Class 2 Integrating Sound Level Meter in stock $1824.00 Purchase the CEL620A2
CEL620A2-K Kit with CEL620A2 Sound Level Meter, Calibrator, Windshield, Case in stock $2435.00 Purchase the CEL620A2-K
CEL620A1 Type 1 / Class 1 Integrating Sound Level Meter in stock $2638.00 Purchase the CEL620A1
CEL620A1-K Kit with CEL620A1 Sound Level Meter, Calibrator, Windshield, Case in stock $3554.00 Purchase the CEL620A1-K

ISC004 Insight Software for CEL620 Series Meters in stock $572.00 Purchase the ISC004
