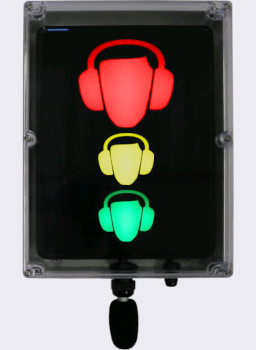

The SoundEar 2 Outdoor Industrial is a noise activated sign for use outdoors, in any weather, and is also suitable for use in environments with high levels of dust. It provides an immediate warning of high noise levels.
This outdoor version of the SoundEar has all the same functions as the standard SoundEar 2, but comes with the additional weather protection and cabling.
The green light is on all the time to remind people that the noise is being monitored. When the sound level gets close to the trigger level (within 5 dB) the yellow light comes on as a warning. As soon as the level goes above the trigger level the red light comes on - it is time to act to reduce the levels or deploy hearing protection.
See the Installation section for information about setting the trigger level.

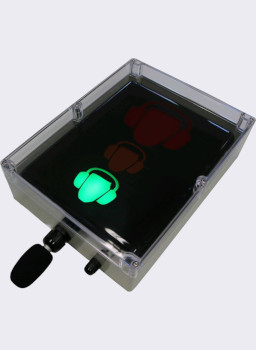

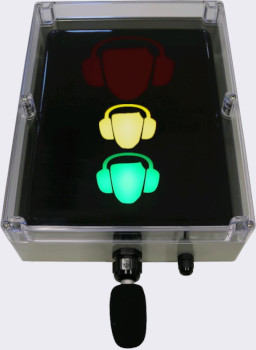

The SoundEar 2 Outdoor consists of a standard SoundEar 2 Industrial Noise Warning Sign fitted inside a wall-mountable weatherproof case. A microphone is mounted on the base of the enclosure, fitted with a suitable windshield. A power cable also enters the bottom of the enclosure.
The SoundEar 2 Outdoor Industrial is ideal for noise warning in wet and dusty environments.
The weatherproof noise sign can be mounted on a wall in an area of varying noise levels. It is particularly helpful in areas where the noise levels are only occasionally high, so people know when to take action to reduce the levels or protect their hearing.
It will continuously measure the sound levels using its built-in microphone and light up to warn when the levels are too high and it is time to take action.
This version of the SoundEar noise warning sign is also perfectly suited to indoor installations. In dusty industrial areas the enclosure keeps the noise warning sign itself clean and free of damage.
You may even choose to use this version of the sign for the extra physical protection it offers. It is more securely mounted to the wall than the standard SoundEar.

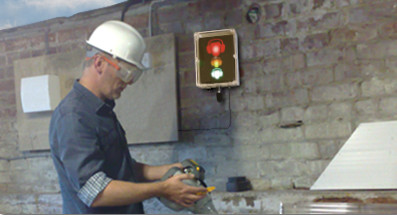

Mounted in and around a construction or building site, the SoundEar becomes an important part of a noise control plan. It can be difficult to know when equipment is making too much noise, especially if you are exposed to it day after day or you are wearing hearing protection. The SoundEar measures the noise and, unlike the human ear, doesn't suffer from a varied perception.
Installation of the SoundEar 2 Outdoor consists of two parts: mounting it on the wall and setting up the trigger level.
With the front cover of the enclosure removed there is access to four mounting holes through which the sign can be fixed to the wall.
Power is provided to the outdoor noise warning sign by a 24 VDC adapter, which is included. The power adapter should be mounted indoors (it has no weather protection) and connects to the noise warning sign via a 10m extension cable, which runs through a gland directly into the base of the noise sign enclosure.
You need to choose the level at which you want the noise sign to light up. In some situations this can be done by trial and error. Set a level and see if that works, adjusting as necessary. A more scientific approach would be to use a sound level meter to measure the sound level at the position of interest and then adjust the noise sign to light up accordingly.
To prevent tampering, the front cover has to be removed using a screwdriver to access the dial that sets the level.

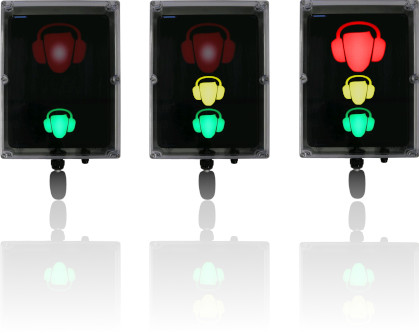

The SoundEar 2 has three main display components in the shape of a standard hearing protection symbol:
You choose the sound level at which the red light comes on. The yellow warning light comes on 5 dB below the red light.
For more options and setting multiple trigger levels see the SoundEar 3 Outdoor Industrial Noise Sign
|Frequency Range||20Hz to 16kHz|
|Trigger Range||40 to 115 dB in 5 dB steps|

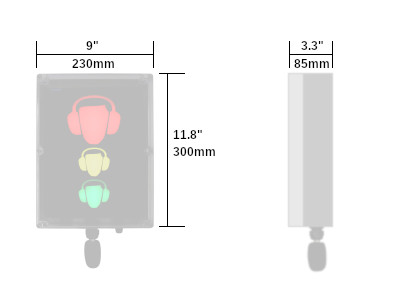

|Dimensions||300 x 230 x 85 mm, 9" x 11.8" x 3.3"|
|Weight||2.4 kg, 5.3 lb|
Power adapter & 10m cable included
